You get an email from a recruiter, vendor, client, or “marketing consultant.” The message looks normal, but something feels off. You open the email header, expecting to find the sender’s real location, but all you see is Google, Microsoft, AWS, or another mail server.
That moment confuses many people. To detect masked IP address in email headers, you need to read the sending path, check IP ownership, validate authentication, and verify the sender outside the inbox.
Google or Microsoft IPs often show the mail provider, not the sender.
VPN, proxy, or TOR nodes can hide the real network.
SPF, DKIM, and DMARC help confirm domain trust.
Free email accounts need extra review in business contexts.
Suspicious senders avoid calls, company emails, and identity checks.
Start With Reality
Email headers show the path a message took through mail servers. They do not always show the sender’s exact device, home network, office location, or physical address.
Before you try to detect masked IP address in email headers, understand this limit. Gmail, Outlook, Yahoo, business email platforms, VPNs, proxies, TOR, and cloud servers can all hide the original sender IP.
Simple rule: headers can reveal trust signals. They cannot always reveal the person behind the email.

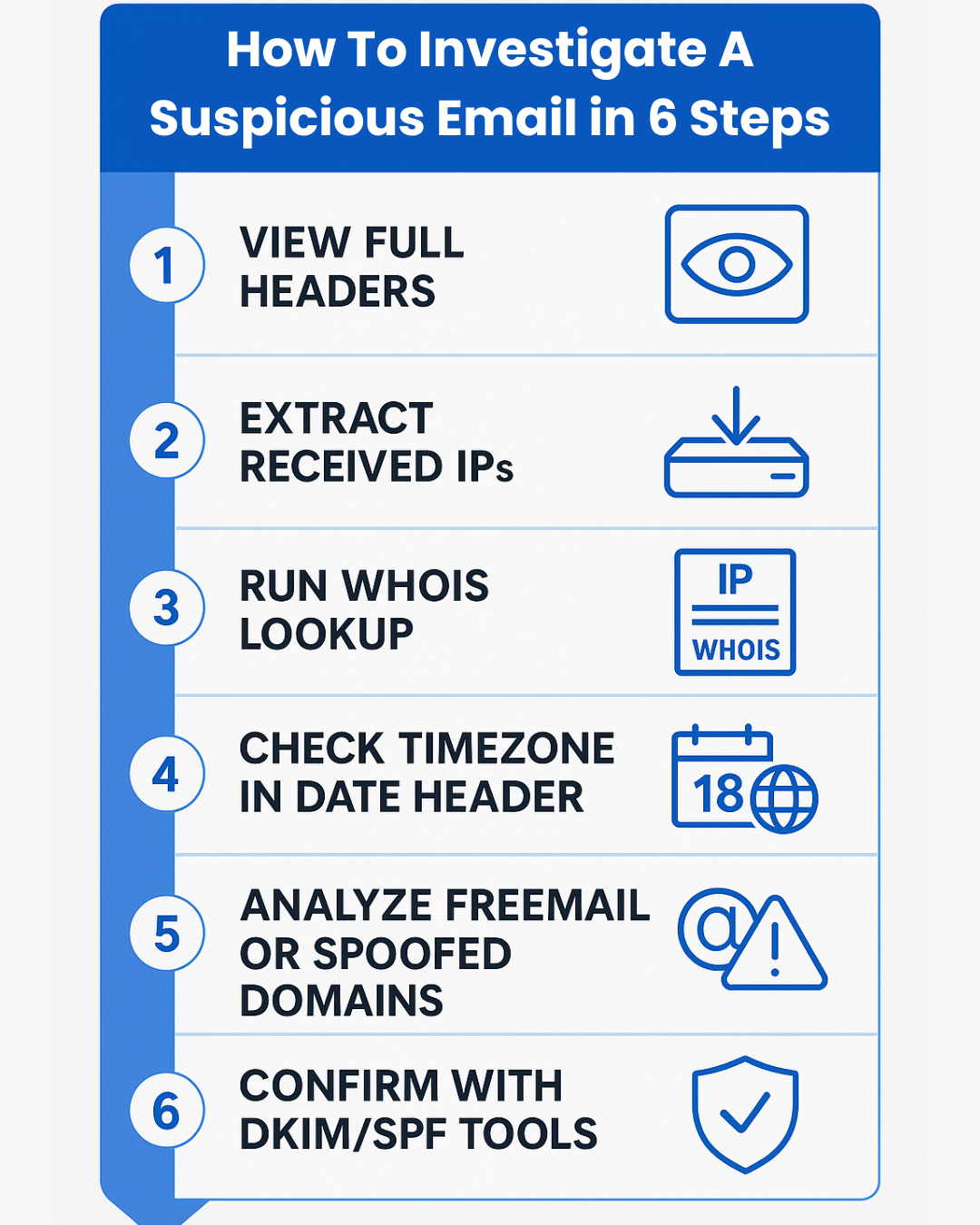

Open Full Headers
You need the full email header before you judge the sending path. The visible “From” name tells you very little.
Show Original
- Open the email.
- Click the three dots.
- Select Show original.
- Review the full header and authentication results.
View Source
- Open the message.
- Use the three-dot menu in Outlook Web.
- Select View message source.
- In desktop Outlook, open File, then Properties.
What To Find
Look for these header fields first:
| Header Field | Why It Matters |
|---|---|
| Received: from | Shows mail server handoffs and possible origin clues. |
| Return-Path | Shows the bounce address and can reveal sender infrastructure. |
| Message-ID | Shows patterns that may point to Gmail, Outlook, or self-hosted mail. |
| Authentication-Results | Shows SPF, DKIM, and DMARC results. |
| X-Originating-IP | May show the original client IP when a provider includes it. |
| DKIM-Signature | Shows whether the message carries a domain signature. |
Tip: You can also paste headers into the external Google Messageheader analyzer to make the server path easier to read.
Read Received Lines
Received lines show the email handoff chain. The newest server usually appears near the top. The oldest useful sender-side clue often appears closer to the bottom.
Example header line:
Received: from mail-yw1-f181.google.com ([209.85.128.181])This line shows that Google handled the email. It does not prove the sender lives in the United States, works at Google, or used a Google-owned device.
This is usually the first place to check when you want to detect masked IP address in email headers.
Do not trust one line alone. Some header fields can be added, changed, or misunderstood. Always compare Received lines with authentication results, IP ownership, domain trust, and sender behavior.
Check IP Ownership
After you find an IP address, check who owns it. Ownership tells you whether the IP belongs to a mail provider, cloud host, residential ISP, VPN company, or proxy service.
Example command:
whois 209.85.128.181| IP Owner | What It Usually Means |
|---|---|
| Google or Microsoft | Webmail or hosted email handled the message. |
| AWS, Azure, or DigitalOcean | A cloud server, script, app, or hosted sender may have sent it. |
| Residential ISP | You may have a closer network clue, but you still need caution. |
| VPN or proxy provider | The sender may have hidden their actual network location. |
| Unknown or blacklisted host | You should review the email with higher suspicion. |
Spot Masking Clues
You rarely get one perfect “masked IP” label. You detect patterns. The more clues you see, the more carefully you should verify the sender.
Only Relays
You only see Gmail, Outlook, Yahoo, or business mail servers.
VPN Host
The IP belongs to a VPN, proxy, TOR exit node, or anonymizing service.
Cloud IP
The IP belongs to AWS, Azure, DigitalOcean, or another hosting provider.
Other clues include missing X-Originating-IP, odd Message-ID patterns, strange relay gaps, or sender claims that do not match the technical trail.
These clues help you detect masked IP address in email headers without jumping to false conclusions.
Verify SPF
SPF checks whether the sending server has permission to send email for that domain. It does not reveal the sender’s real location, but it helps you detect spoofing.
Pass Result
SPF: PASS
DKIM: PASS
DMARC: PASSThis result improves trust, but you should still check the sender and links.
Fail Result
SPF: softfail
DKIM: fail
DMARC: failThis result suggests spoofing, misconfiguration, or suspicious sending infrastructure.
These checks also appear in CompTIA Security+ basics because email authentication plays a major role in phishing defense.
Check DKIM
DKIM checks whether the message carries a valid domain signature. A valid DKIM signature can show that the message stayed intact after the sender’s mail system signed it.
A failed or missing DKIM signature does not always prove fraud. Some companies configure email poorly. Still, you should treat a DKIM failure as a reason to slow down.
Best use: Compare DKIM with SPF, DMARC, the visible From domain, and the sender’s business identity.
Confirm DMARC
DMARC checks whether SPF or DKIM aligns with the visible From domain. This matters because attackers often spoof brand names while sending from unauthorized servers.
If DMARC fails on a finance, HR, vendor, invoice, or login-related email, do not click links or open attachments. Verify the sender through another channel.
Flag Freemail
Gmail, Yahoo, Outlook, and Hotmail work fine for personal email. They create more risk when someone uses them for invoices, partnerships, recruiting, agency pitches, or financial requests.
Freemail Pitch
From: "Daniel" <toprankresults@gmail.com>This sender may be real, but you need stronger proof.
Domain Email
From: Daniel <daniel@growthinsight.io>This gives you a company domain to verify.
A company-domain email does not guarantee safety. It only gives you more evidence to test.
Check Time Clues
The Date header and reply patterns can give you soft clues. They cannot prove identity on their own.
Example:
Date: Tue, 1 Jul 2025 21:15:39 +0100If someone claims to work in California but always replies during UK or West Africa business hours, you should mark it as a soft warning sign. Combine it with IP ownership, domain age, authentication results, and sender behavior.
Be careful: People travel, devices use wrong time zones, and cloud systems do not always match the sender’s location.
Use Reputation Tools
Reputation tools help you move from guessing to evidence. Use them to review IPs, domains, blacklists, and sender trust signals.
| Tool Type | Use It For |
|---|---|
| Header analyzer | Read delivery paths and server delays faster. |
| IP lookup | Check IP ownership, network type, and rough location. |
| Blacklist check | See whether an IP or domain appears in spam records. |
| WHOIS lookup | Review domain age, ownership clues, and registration patterns. |
| Email reputation check | Review sender trust signals before you respond. |
Example check:
curl https://emailrep.io/fakepitch23@gmail.comWatch Behavior
When headers stop helping, behavior often reveals risk. Scammers and phishers reuse patterns because templates save them time.
Odd Timing
The sender always replies during another region’s working hours.
Pressure Tactics
The sender pushes urgency, payment, secrecy, or fast approvals.
Template Reuse
Multiple senders use the same wording, signature, or proposal.
This kind of investigation overlaps with ethical hacker skills because you test claims instead of trusting the visible sender name.
Ask For Proof
If the sender looks suspicious, stop relying only on the email thread. Ask for proof that an attacker cannot easily fake.
Identity Proof
- Company-domain email
- Verified LinkedIn profile
- Video call
- Official company page
Business Proof
- Partner listing
- Vendor portal proof
- Signed document from a verified domain
- Phone confirmation for invoices or payment changes
If someone claims to be a HubSpot Partner, Microsoft Partner, Google Partner, recruiter, vendor, or finance contact, ask them to verify that claim outside the email thread.

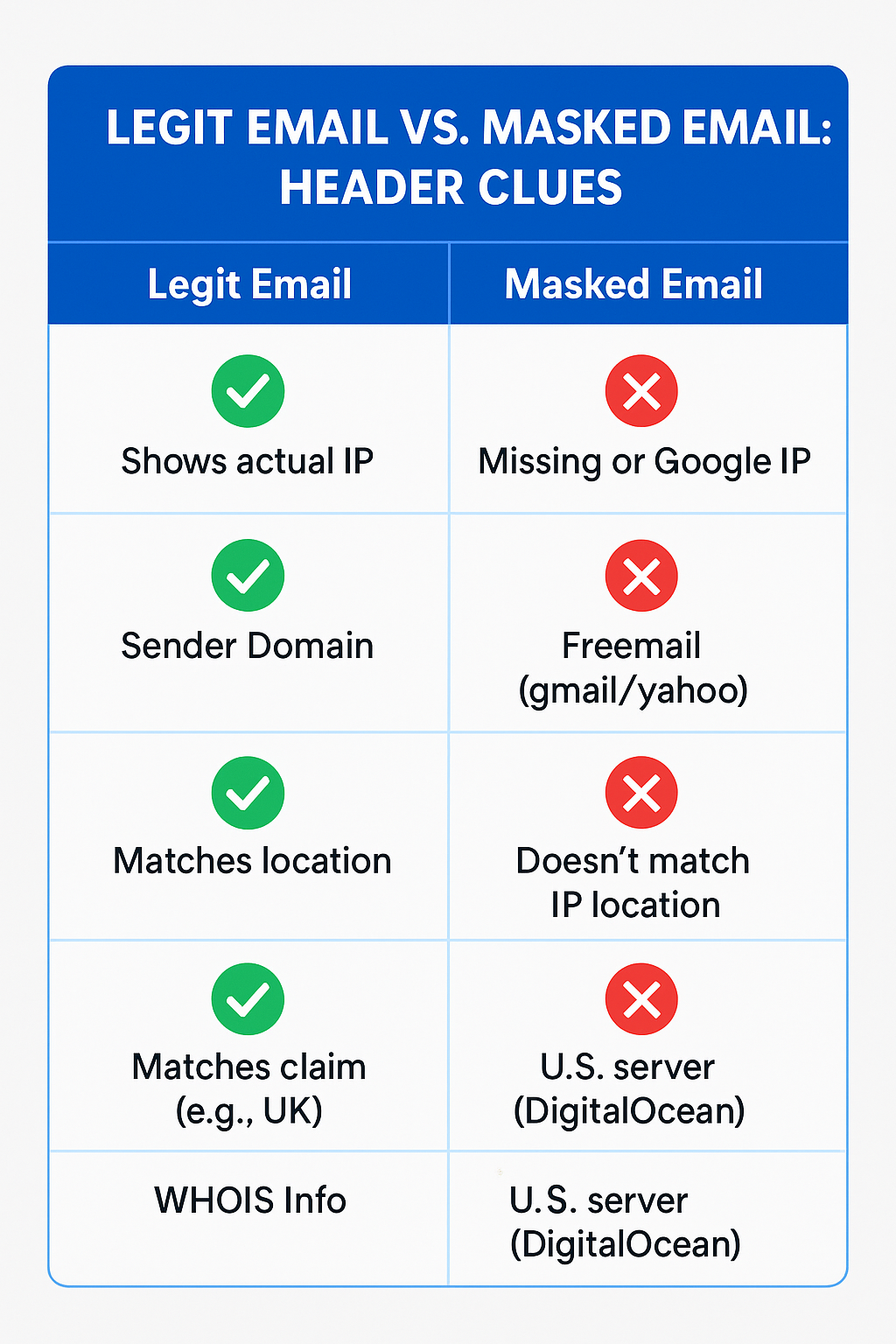

Use This Table
Use this table when you need a quick risk read. It helps you detect masked IP address in email headers without treating every hidden IP as a scam.
| Header Clue | What It Means | Risk |
|---|---|---|
| Only Gmail or Microsoft IPs appear | The provider hides the sender’s device IP. | Medium |
| IP belongs to VPN or proxy | The sender may have hidden their network location. | Medium to High |
| IP belongs to cloud hosting | An app, relay, script, or spam tool may have sent it. | Medium |
| SPF fails | The sending server may not have permission. | High |
| DKIM fails | The message signature failed or does not exist. | High |
| DMARC fails | The visible From domain may not align with authentication. | High |
| X-Originating-IP is missing | Many webmail providers remove it for privacy. | Low to Medium |
| Freemail handles business offer | The sender needs extra identity verification. | Medium |
| Domain looks new | The sender may use a throwaway domain. | Medium to High |
Know The Limits
Email headers can help you find server paths, mail relays, authentication results, and infrastructure clues. They usually cannot prove the sender’s exact physical location.
You usually cannot prove: the sender’s home address, exact device, exact city, personal identity, or intent from headers alone.
The goal of trying to detect masked IP address in email headers is not to catch someone instantly. The goal is to reduce trust until the sender proves who they are.
Build Your Skills
At MockCertified, we create practical mock tests for learners who want to strengthen cybersecurity, networking, and threat-analysis skills. Once you understand email headers, SPF, DKIM, DMARC, and sender reputation, you can test yourself with our CEH mock tests and explore broader cybersecurity certifications.
If this kind of investigation work interests you, roles in SOC analysis, network security, and incident response can also lead toward strong CISSP cybersecurity careers.
Final Takeaway
Masked IPs do not always signal fraud. They signal limited visibility. Gmail, Outlook, VPNs, proxies, cloud relays, and privacy-focused systems can all hide the sender’s device IP.
The safest way to detect masked IP address in email headers is to combine technical clues with sender verification. Read the Received lines, check IP ownership, validate SPF, DKIM, and DMARC, review behavior, and ask for proof before you trust the message.
FAQs
Can I find the sender’s real IP from Gmail?
Usually, no. Gmail often shows Google mail server IPs instead of the sender’s device IP.
Does a Google IP mean the sender is hiding?
Not always. It usually means Gmail handled the message. Treat it as limited visibility, not proof of fraud.
What is the best way to detect masked IP address in email headers?
Open the full headers, review Received lines, check IP ownership, validate SPF, DKIM, and DMARC, then verify the sender outside the email thread.
Is missing X-Originating-IP suspicious?
Not by itself. Many providers remove this field for privacy. Use it as one signal, not final proof.
Can VPNs hide email sender IPs?
Yes. VPNs and proxies can hide the sender’s real network. Many email services also hide device IPs through their own mail servers.
Can SPF, DKIM, and DMARC reveal the real IP?
No. They verify sending permission, message signatures, and domain alignment. They do not reveal the sender’s physical location.
What should I do if the sender looks suspicious?
Do not click links or open attachments. Ask for a company-domain email, video call, official profile, partner listing, or phone confirmation.
